Gigahertz Solutions - HF59B RF Meter
Gigahertz Solutions - HF59B RF Meter Options:
$1,178.00
Description

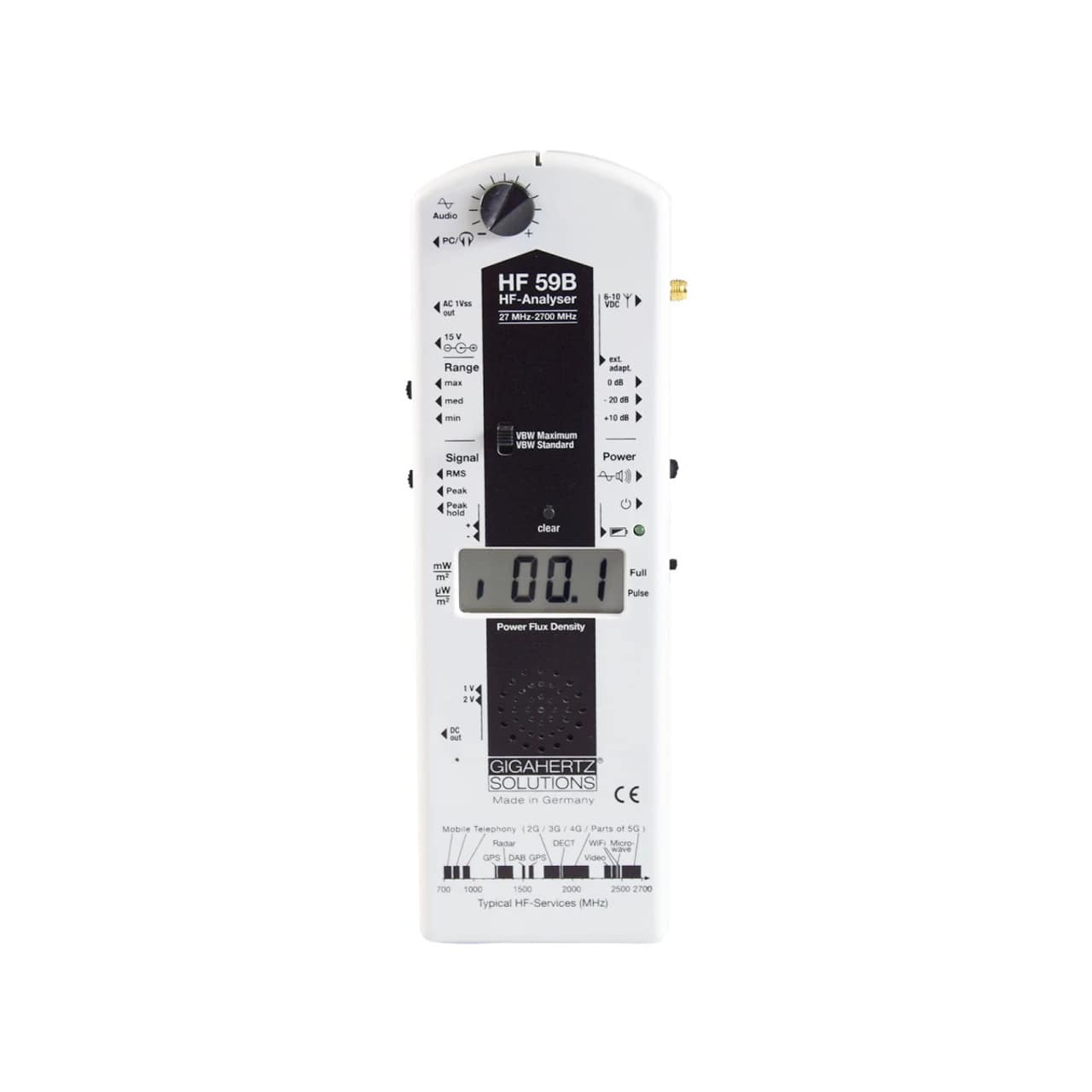

Gigahertz Solutions HF59B RF Meter
Advanced Professional Level RF Analyzer
Gigahertz Solutions HF59B RF Meter is our best professional-level RF Meter with a measuring range of 700 MHz – 3.3 GHz.
This meter also includes audio signal analysis and a standard directional antenna, a peak hold feature, and data output ports.

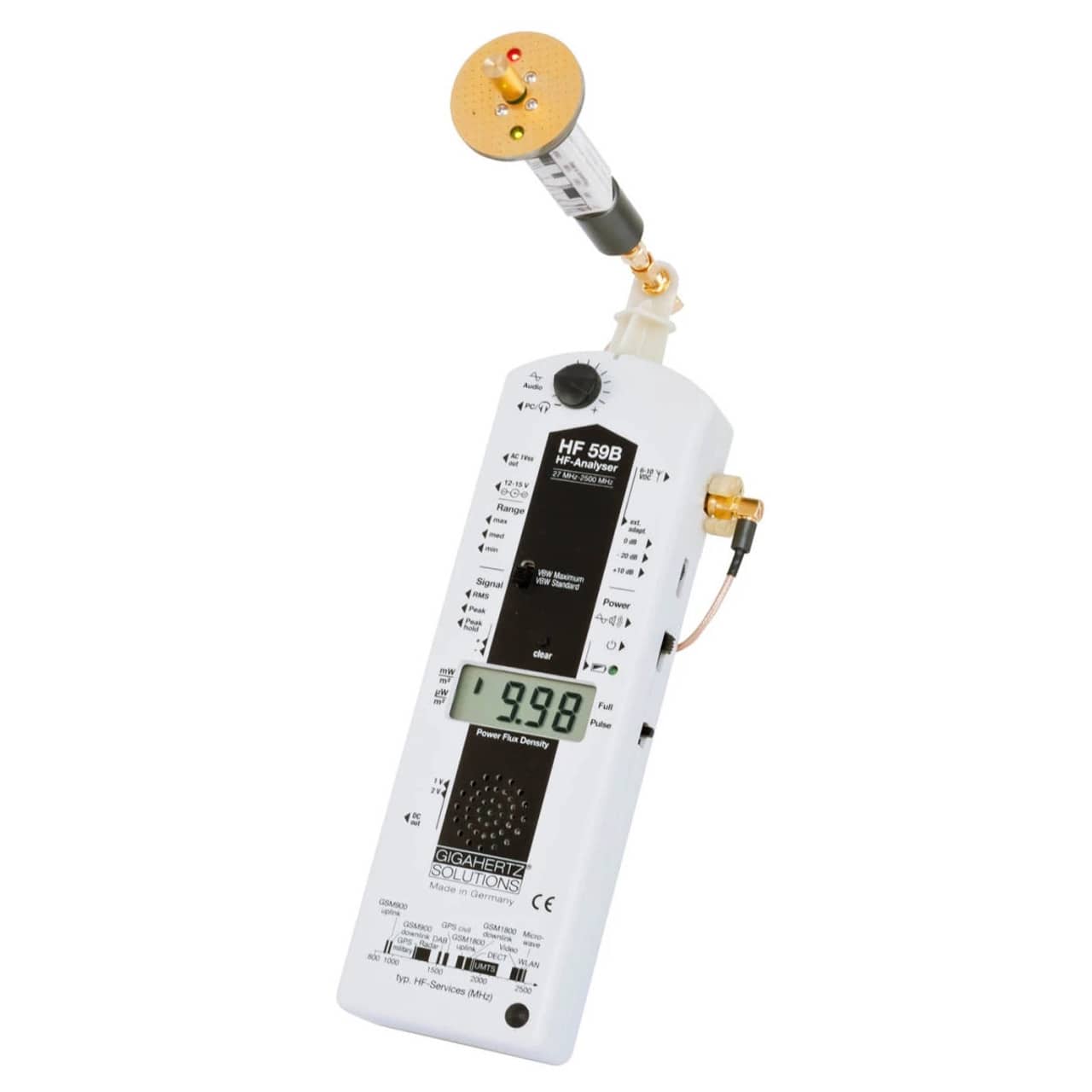

This meter is compatible with the UBB27 “Quasi” Isotropic Antenna, which will extend the measuring range 27MHz – 3.3GHz, and allows for Omni-Directional measurements.
“Know for sure” what EMF levels you are being exposed to – own a Gigahertz Solutions HF59B RF Meter.
Designed to meet Bau–Biologie RF measurement performance requirements.
Sophisticated Source Identification Plus Enhanced Accuracy Features Make the HF59B RF Meter Radio Frequency Analyzer – An RF Technician’s 1st Choice.

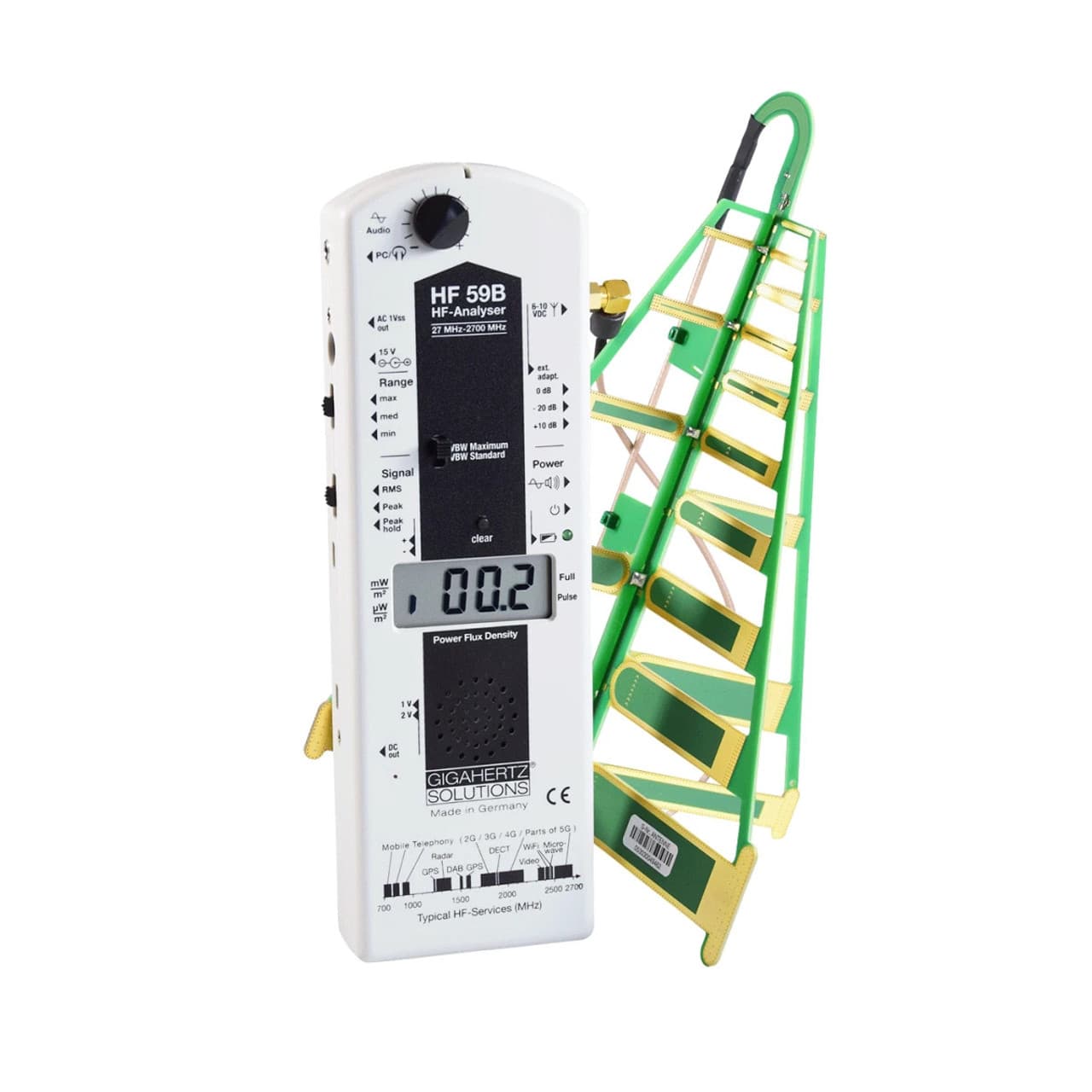

- Equipped with a directional logarithmic periodic antenna, this system facilitates source identification. Readings increase when the antenna is pointed in the direction of or moved closer to offending sources – Frequency Range of 800 MHz to 3.3 GHz
- It is compatible with the UBB27 “Quasi” Isotropic Antenna, which can be purchased separately or as part of the HFE59B Meter Kit.
- Optional Pulsed Signal Setting or Analogue Signal Setting: Allows for in–depth signal identification and RF risk assessment. Studies show that digital signals have the most significant biological impact.
- AC/DC Outputs for Data Logging Functions: Enables thorough test site assessment via data logging. Also designed to interface with computers and the NFA 1000 Data Logger
- Detects RF radiation generated by cellular phones and cordless phones (DECT); microwave ovens; Radar; wireless communication devices (such as internet routers, WLAN, Wi-Fi, baby monitors, Bluetooth, video games); smart meters; cell phone towers in the operational range of 700 MHz to 3.3 GHz (GSM, UMTS, 2G, 3G, 4G)
Features
Enhanced Accuracy Features:
- Three Measuring Ranges: (Coarse: 1.0 – 19,999 µW/m²; Medium: 0.1 – 199.9 µW/m²; Fine: 0.01 – 19.99 µW/m²). The Medium range and Fine range options provide added value when needing an accurate assessment of moderate to weaker signals.
- Option to add Attenuator DG20 G10: the Attenuator boosts the meter’s maximum measuring range by a factor of 100 (20 dB), which means stronger exposure levels can be accurately assessed up to 2,000,000 µW/m²
- Peak Hold Feature guarantees accurately capturing momentary pulses, as in those emitted by smart meters
Additional Features:
- Antennas: Directional Logarithmic Periodic “LogPer” 700MHz – 2.7 GHz 45º
- AC/DC Outputs: Facilitates equipment interfacing: oscilloscopes/spectrum analyzers / full audio assessment /data logging (5 mV DC or 10 mV per digit) switchable
- LCD Display (3.5 digits): Easy-to-read 3.5-digit display
- Accuracy / Linearity Deviation: +/– 3 dB
- Audible Tone: The meter’s audio tone replicates the patterns and intensity of measured RF emissions
- Signal Detection Type: Peak, Average, and Peak Hold feature – Radar / UMTS / 3G / 4G – Able to measure Analogue and Digital (pulsed) separately
- Power Supply: Rechargeable battery (NIMH supplied) – compatible with 9 Volt alkaline battery
- Battery Recharging Unit: 12 VDC battery charger supplied
- Battery Low Indicator: Meter will auto–power off 3 minutes following battery low signal display
- Auto Power Off: Saves on battery use – will auto–power off after 40 minutes of continuous EMF testing
- Operating Time: NIMH provides up to 7 hours of continuous use/ alkaline disposable batteries provide up to 24 hours of continuous EMF testing
- Measuring Ranges: 0.01 –19.99 µW/m² // 00.1 – 199.9 µW/m² // 0.01 – 19.99 mW/m²
- Carrying Case: Sturdy plastic storage/carrying case included
Inclusions
- Plastic Carrying Case – K2 (33 x 27 x 16) cm (13 x 10.6 x 6.2) inches
- HF59B Radio Frequency Analyzer
- Antenna – Logarithmic Periodic 700 MHz – 2.7 GHz vertically polarized
- Users Guide – RF Analyzer
- 2 Year Warranty Certificate
- Rechargeable Battery Pack
- 120 VAC Battery Charger (220 VAC charger available on request)
- Silicone protective cover – black
Also Includes:
- The meter’s audio tone replicates the patterns and intensity of measured RF emissions.
- Plug-in earphone accessory is optional.
- Comes equipped with both the NiMH rechargeable battery and battery charger, a storage/carrying case designed to hold all of the HFE59B components, and it can accommodate an additional RF meter or EMF meter.
Calibration
During the manufacturing process, strict calibration procedures are followed using only high-end, calibrated measurement instruments. This guarantees that every HF59B meter made by Gigahertz has been individually calibrated to a traceable standard.
$2,081.00
Description
Gigahertz Solutions HF59B RF Meter
Advanced Professional Level RF Analyzer
Gigahertz Solutions HF59B RF Meter is our best professional-level RF Meter with a measuring range of 700 MHz – 3.3 GHz.
This meter also includes audio signal analysis and a standard directional antenna, a peak hold feature, and data output ports.
This meter is compatible with the UBB27 “Quasi” Isotropic Antenna, which will extend the measuring range 27MHz – 3.3GHz, and allows for Omni-Directional measurements.
“Know for sure” what EMF levels you are being exposed to – own a Gigahertz Solutions HF59B RF Meter.
Designed to meet Bau–Biologie RF measurement performance requirements.
Sophisticated Source Identification Plus Enhanced Accuracy Features Make the HF59B RF Meter Radio Frequency Analyzer – An RF Technician’s 1st Choice.
- Equipped with a directional logarithmic periodic antenna, this system facilitates source identification. Readings increase when the antenna is pointed in the direction of or moved closer to offending sources – Frequency Range of 800 MHz to 3.3 GHz
- It is compatible with the UBB27 “Quasi” Isotropic Antenna, which can be purchased separately or as part of the HFE59B Meter Kit.
- Optional Pulsed Signal Setting or Analogue Signal Setting: Allows for in–depth signal identification and RF risk assessment. Studies show that digital signals have the most significant biological impact.
- AC/DC Outputs for Data Logging Functions: Enables thorough test site assessment via data logging. Also designed to interface with computers and the NFA 1000 Data Logger
- Detects RF radiation generated by cellular phones and cordless phones (DECT); microwave ovens; Radar; wireless communication devices (such as internet routers, WLAN, Wi-Fi, baby monitors, Bluetooth, video games); smart meters; cell phone towers in the operational range of 700 MHz to 3.3 GHz (GSM, UMTS, 2G, 3G, 4G)
Features
Enhanced Accuracy Features:
- Three Measuring Ranges: (Coarse: 1.0 – 19,999 µW/m²; Medium: 0.1 – 199.9 µW/m²; Fine: 0.01 – 19.99 µW/m²). The Medium range and Fine range options provide added value when needing an accurate assessment of moderate to weaker signals.
- Option to add Attenuator DG20 G10: the Attenuator boosts the meter’s maximum measuring range by a factor of 100 (20 dB), which means stronger exposure levels can be accurately assessed up to 2,000,000 µW/m²
- Peak Hold Feature guarantees accurately capturing momentary pulses, as in those emitted by smart meters
Additional Features:
- Antennas: Directional Logarithmic Periodic “LogPer” 700MHz – 2.7 GHz 45º
- AC/DC Outputs: Facilitates equipment interfacing: oscilloscopes/spectrum analyzers / full audio assessment /data logging (5 mV DC or 10 mV per digit) switchable
- LCD Display (3.5 digits): Easy-to-read 3.5-digit display
- Accuracy / Linearity Deviation: +/– 3 dB
- Audible Tone: The meter’s audio tone replicates the patterns and intensity of measured RF emissions
- Signal Detection Type: Peak, Average, and Peak Hold feature – Radar / UMTS / 3G / 4G – Able to measure Analogue and Digital (pulsed) separately
- Power Supply: Rechargeable battery (NIMH supplied) – compatible with 9 Volt alkaline battery
- Battery Recharging Unit: 12 VDC battery charger supplied
- Battery Low Indicator: Meter will auto–power off 3 minutes following battery low signal display
- Auto Power Off: Saves on battery use – will auto–power off after 40 minutes of continuous EMF testing
- Operating Time: NIMH provides up to 7 hours of continuous use/ alkaline disposable batteries provide up to 24 hours of continuous EMF testing
- Measuring Ranges: 0.01 –19.99 µW/m² // 00.1 – 199.9 µW/m² // 0.01 – 19.99 mW/m²
- Carrying Case: Sturdy plastic storage/carrying case included
Inclusions
- Plastic Carrying Case – K2 (33 x 27 x 16) cm (13 x 10.6 x 6.2) inches
- HF59B Radio Frequency Analyzer
- Antenna – Logarithmic Periodic 700 MHz – 2.7 GHz vertically polarized
- Users Guide – RF Analyzer
- 2 Year Warranty Certificate
- Rechargeable Battery Pack
- 120 VAC Battery Charger (220 VAC charger available on request)
- Silicone protective cover – black
Also Includes:
- The meter’s audio tone replicates the patterns and intensity of measured RF emissions.
- Plug-in earphone accessory is optional.
- Comes equipped with both the NiMH rechargeable battery and battery charger, a storage/carrying case designed to hold all of the HFE59B components, and it can accommodate an additional RF meter or EMF meter.
Calibration
During the manufacturing process, strict calibration procedures are followed using only high-end, calibrated measurement instruments. This guarantees that every HF59B meter made by Gigahertz has been individually calibrated to a traceable standard.
Video
Manuals
Product Specification
- Frequency Range of Meter:
- 27 MHz to 3.3 GHz
- Measurement Ranges:
- Fine: 0.01 – 19.99 µW/m² ~– 70 dBm
Medium: 0.1 – 199.9 µW/m² ~– 60 dBm
Course: 10 – 19,999 µW/m² ~ – 50 dBm
- Attenuation:
- Modules available to extend the scales in increments of 20db
- Antenna:
- (Sold Separately) Ultra Broadband Omni-Directional Antenna (UBB27) 27 MHz to above 3.3 GHz +
Standard True Logarithmic Periodic Antenna 700 MHz – 3.3 GHz
Both horizontally and vertically polarized
Antenna polarized for improved h/v dec
- Signal Evaluation:
- True Peak and average
- Accuracy:
- + / – 3.0 dB
- Linearity Deviation:
- + / – 3.0 dB
- Rollover:
- + / – 5 digits
- Dimensions:
- 71 x 225 x 31 mm (W x L x H) approx 2–3/4 x 9 x 1.25 inches
- Weight:
- Approx. 270 grams
- Material of Case:
- Plastic
Product Specifications
| Frequency Range of Meter | 400 MHz to 7.2 GHz (will detect signals from 200 MHz to 8 GHz) |
| Accuracy | +/- 6dB – 3rd Party Certified – testing report attached |
| Measurement Range | 0.001 µW/m² to 3,180,000 µW/m² (Linear response between 0.1µW/m² and 1,000,000µW/m²) |
| Sampling Rate | 200 kHz |
| Response Time | <5 μs |
| LED Range @ 2.4 GHz–Green (Flashing) | <1 µW/m² |
| LED Range @ 2.4 GHz–Green | 10 µW/m² |
| LED Range @ 2.4 GHz–Yellow | 10 – 100 µW/m² |
| LED Range @ 2.4 GHz–Orange | 100 – 1,000 µW/m² |
| LED Range @ 2.4 GHz–Red | 1,000 – 10,000 µW/m² |
| LED Range @ 2.4 GHz–Red (Slow Flashing) | 10,000 – 100,000 μW/m² |
| LED Range @ 2.4 GHz–Red (Fast Flashing) | >100,000 μW/m² |
